Rotary Stages

Home > Product > Motorized Movement Stage > Rotary Stages

Variety of Rotary Stage Options
Stage top diameters from 40 to 240 mm; apertures up to 101 mm; loads up to 300 kg; vacuum and IP rated options

High Precision & Precise Alignment
Repeatability down to 0.001°; accuracy down to 0.008°; direct encoders for closed-loop positioning; high tolerance apertures

Modular
Easily mounts to Zaber linear stages, tip/tilt devices, and rotary stages for multi-axis rotary systems.

Time-Saving Options
Save time integrating, testing, and sourcing with optional built-in motors, encoders, & controllers.

Product Selection

Model	Image	Key Features	Dimensions Size Mm	Precision °	Repeatability °	Speed rpm	Torque N⋅cm	Load N

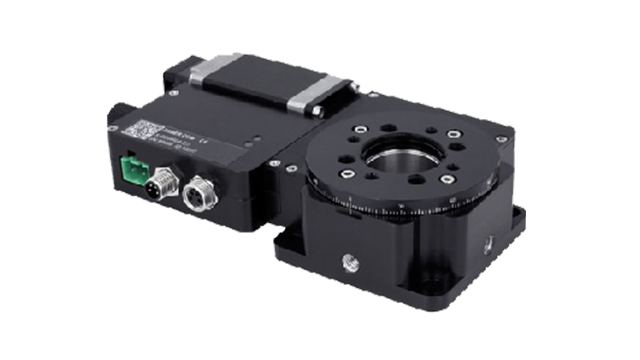

RSW		紧凑型	Φ 60	0.08	＜0.02	75 450/s	280	200

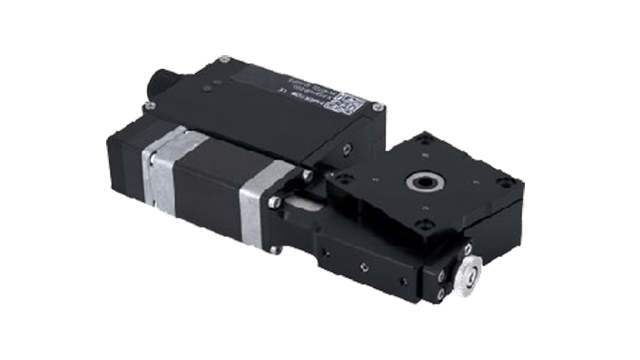

RSM		高紧凑	40 × 40	0.14	＜0.02	20 120°/s	60	50

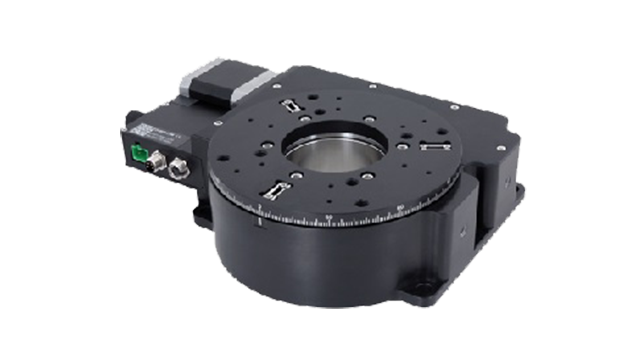

RST		高负载	Φ 120 Φ 240	0.008 0.01 0.16	＜0.0015 ＜0.005	4 —10 24 — 60°/s	7000	3000

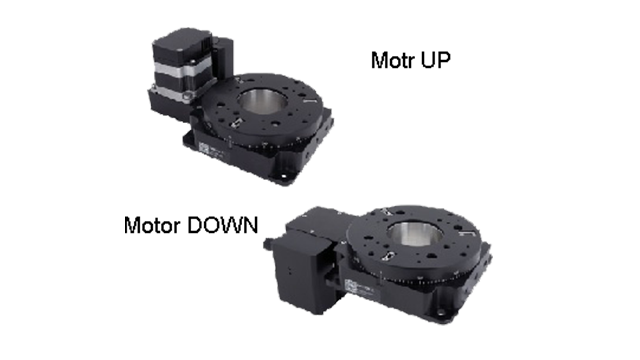

RSB		高速皮带传动	Φ 60 Φ 120	0.2 0.28	＜0.001	1200 720°/s	750	500
