XYR 3-Axis Stages

Home > Product > Micromotion control > XYR 3-Axis Stages

The PRECIBEO GO XYR stage moves loads of up to 10 kg with nanometer precision along the X- and Y-axis, as well as around the Z-axis.

All products in the modular PRECIBEO GO system are compatible and are easily combined into multi-axis systems offering Smooth Continuous Motion, Fast Step & Settling Times and that are Self-Locking at Rest.

Product Selection

Model	Image	Travel (X,Y) mm	Travel θ (Z) °	Minimum Incremental Motion (X,Y) nm	Minimum Incremental Motion θ (Z) µrad	Repeatability (X,Y) nm	Repeatability θ (Z) µrad	Maximum Operating Force (Push/Pull) N

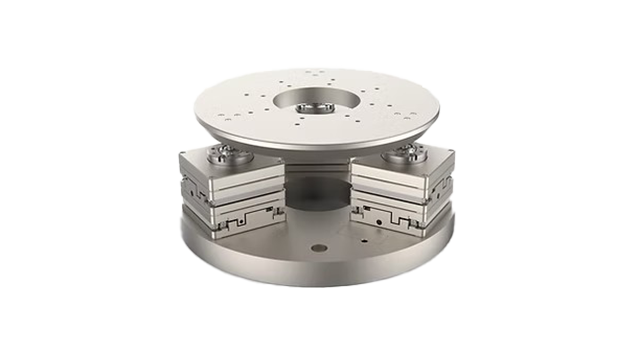

XYR-8N		± 10	± 10	2	＜ 0.1	± 200	± 15	(X) 10 / (Y) 8

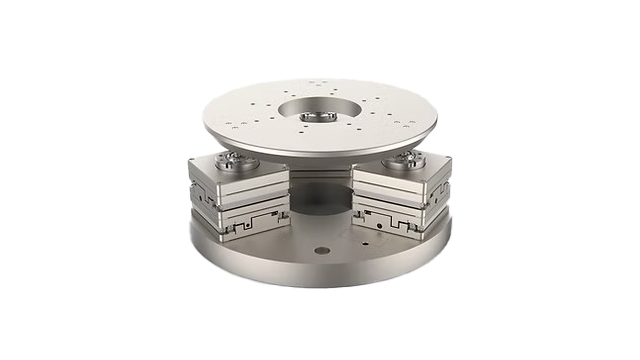

XYRHV-8N		± 10	± 10	2	＜ 0.1	± 200	± 15	(X) 10 / (Y) 8
XYR-16N		± 10	± 10	2	＜ 0.1	± 200	± 15	(X) 20 / (Y) 16
XYRHV-16N		± 10	± 10	2	＜ 0.1	± 200	± 15	(X) 20 / (Y) 16
