Micro linear actuators

Home > Product > Micromotion control > Micro linear actuators

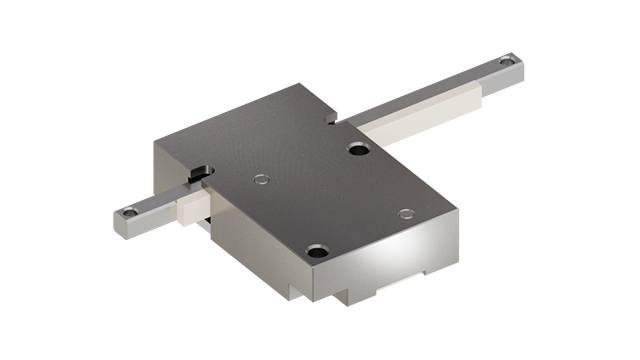

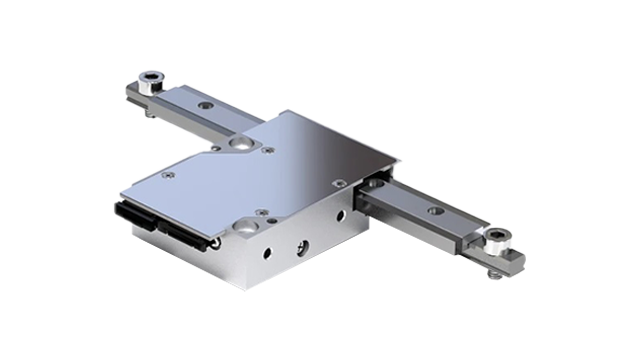

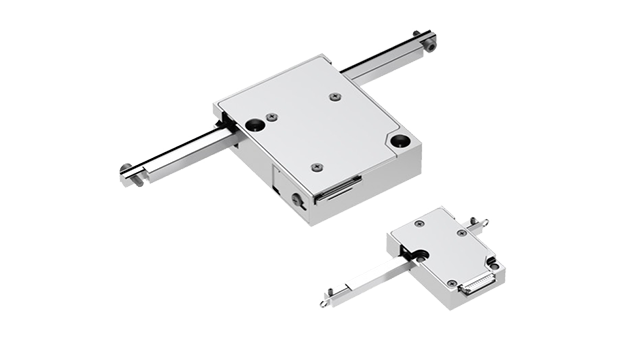

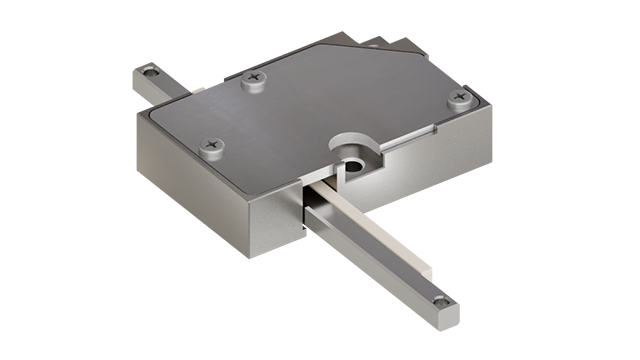

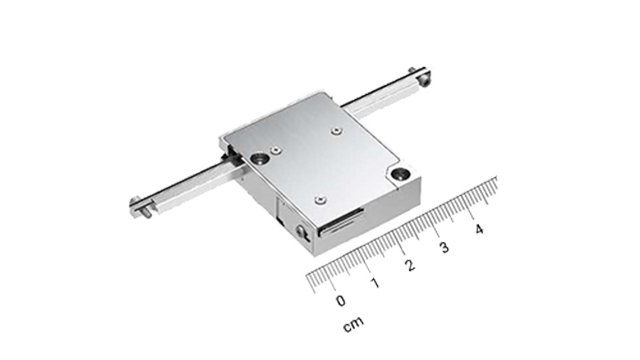

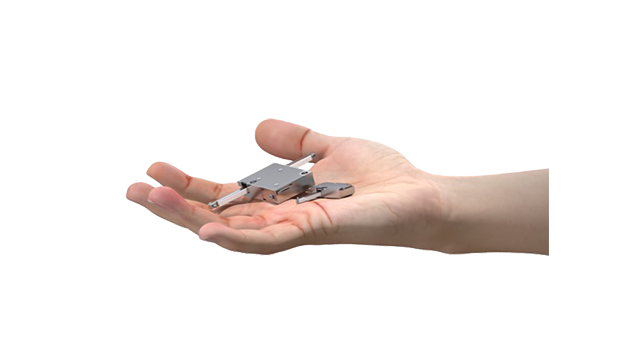

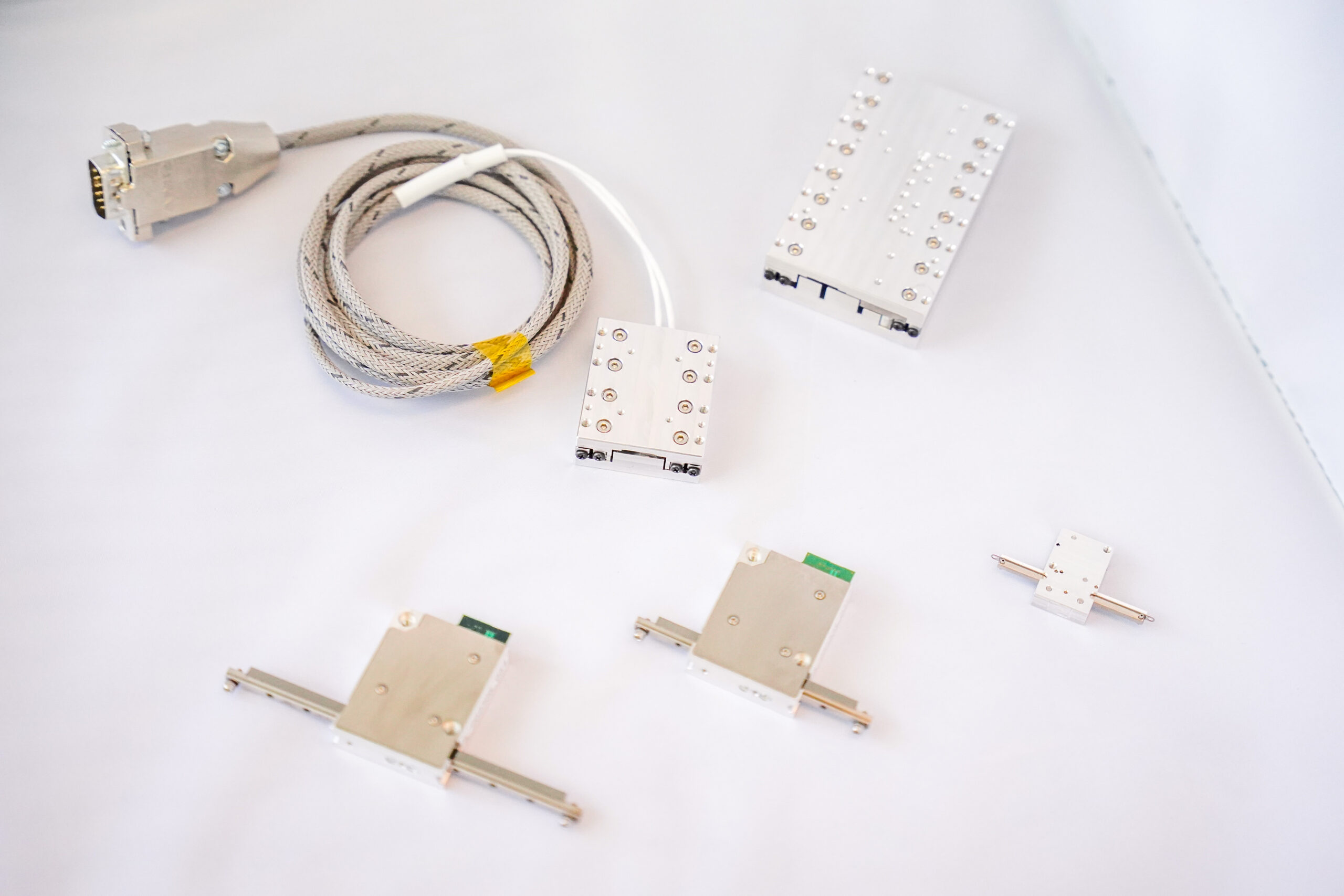

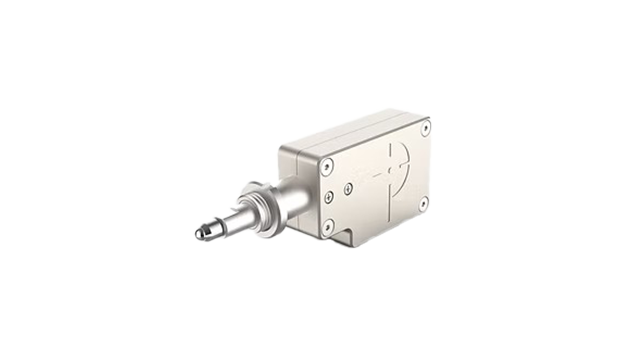

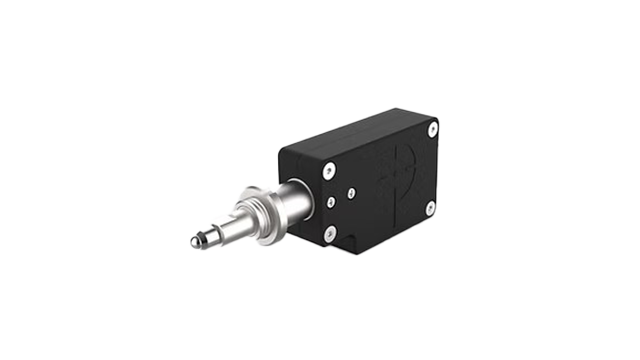

The Xeryon ultrasonic mini linear actuator is a precise and very fast micro actuator driven by our Crossfixx noiseless ultrasonic piezo motor. This allows for high speed motion and precise positioning. The open-loop model has (adjustable) magnetic limit-switches. The self-locking piezo motor holds the position of the actuator when it is not powered. As a result, energy consumption and heat generation are considerably reduced. The XLA is the fastest actuator of this size in the world! The XLA is a real OEM product but a break-out board is available for test setups.

Product Selection

Model	Image	Force N	Range mm	Weight g	Resolution nm	Repeatability nm	Speed
XLA-1		1	5 — 145	5.5 — 17.5	1000 250 75	± 1000 ± 250 ± 75	5 um/s Min. 400 mm/s Max.
XLA-5		5	10 — 150	37 — 55.4	1000 250 75	± 1000 ± 250 ± 75	2 — 5 um/s Min. 400 mm/s Max.
XLA-10		10	15 — 150	56.1 — 86.8	1000 250 75	± 1000 ± 250 ± 75	2 — 5 um/s Min. 400 mm/s Max.
