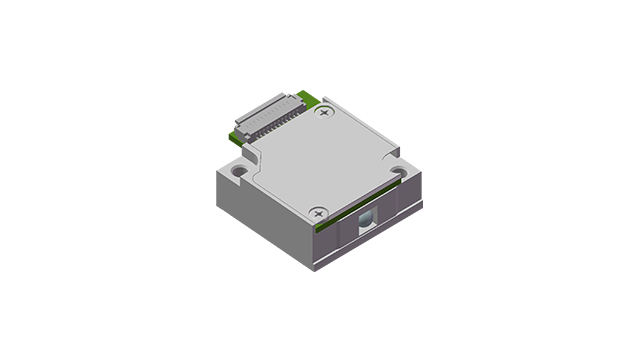

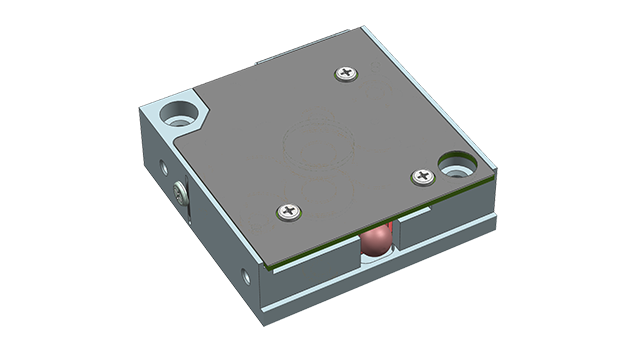

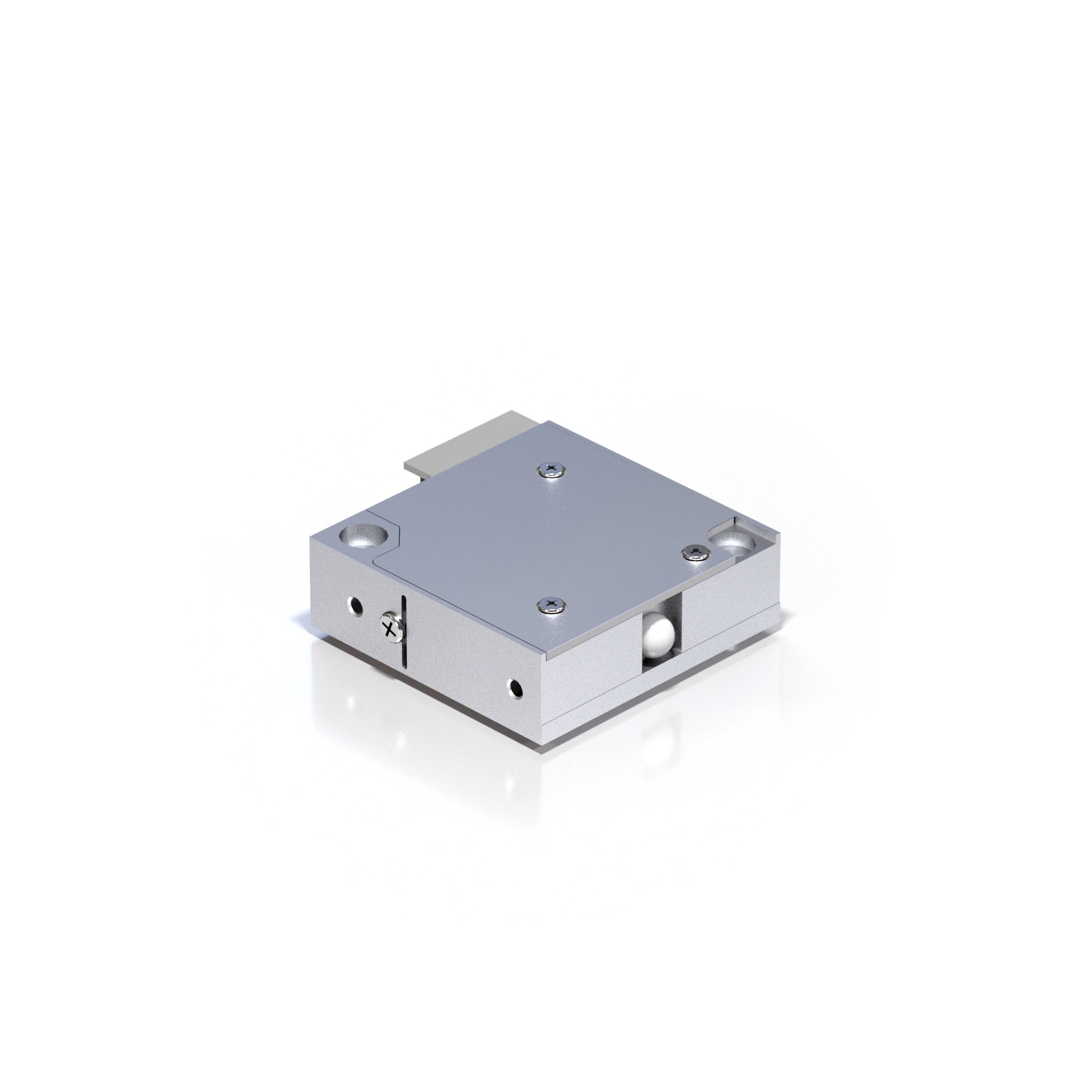

The XUMU is an ultrasonic piezo motor, with integrated controller, allowing for an extremely compact design and easy integration. The included ceramic strip is attached to the movable object, providing easy and flexible integration in various kinds of applications. Perfect for micro-automation, sample positioning and OEM motion projects.

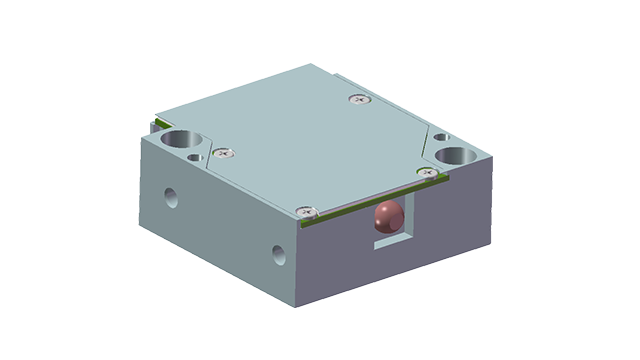

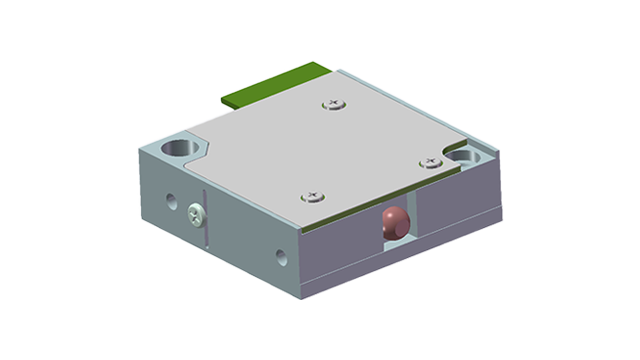

The XUMU ultrasonic motor has an integrated suspension and can be mounted with two screws in slide slots. Mount the adhesive ceramic strip onto the sliding object and place the XUMU ultrasonic motor against the ceramic strip. Positioning the motor is as easy as it gets: put two screws in the slide slots and move the motor into position using the spacer shim. The motor can then be controlled by analog control or by PWM.

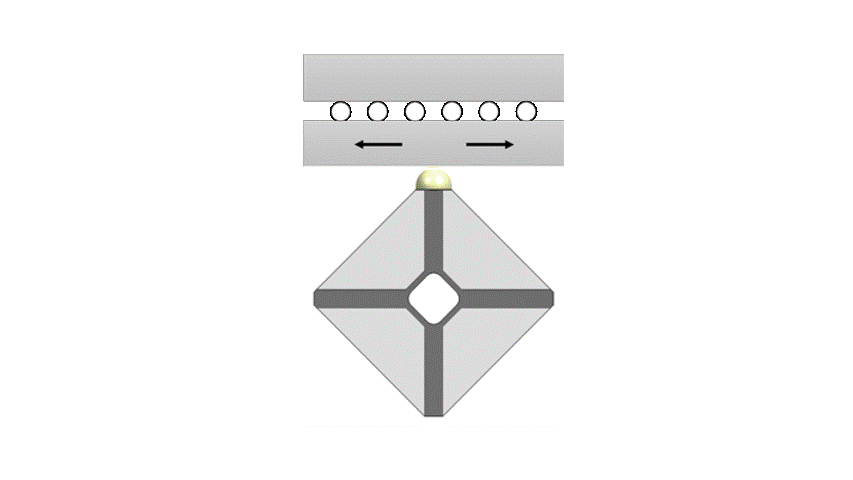

The XUMU motor is driven by the Crossfixx ultrasonic piezo technology, allowing for a silent and fast positioning of any object. The lifetime of over 1000 km (or 20 million cycles) puts the XUMU at the top, supporting a wide range of applications. The XUMU motor is a real OEM product but a break-out board is available for test setups.
